Panel 85
معلومات عامة
Versatile and very easy to install.The most common and standard linear system. Open or closed system options available. This system creates a rounded linear aesthetic. Offered in a variety of colors and finishes with perforation patterns for enhanced acoustic performance. Rounded panels with 85mm width and 15mm wide open joints enhance the linear appearance of the ceiling, providing a directional effect to the room. For a smoother appearance the joints can be closed with a join profile. Panels can be supplied in any length up to 6000 mmPanels that can be easily demounted, allows for full access to services and equipment in the plenumThis system is suitable for all building sectors including Corporate, Transport (airports, metro, bus & train stations), Retail, Leisure, Public space, Hospitality, Healthcare, Education and Residential environments.
- Panel Tipi
- Alüminyum
- Modül
- 35-85-100-135-185 R
- Perforasyon
- Ø0.7 mm. / Ø1.5 mm. / Ø1.8 mm. / Ø2.5 mm.
- Renk
- Standart RAL 9010 ve 9016
- Kalınlık
- 0.40 mm - 0.70 mm
- Akustik Kumaş
- Soundtex Kumaş
التفاصيل

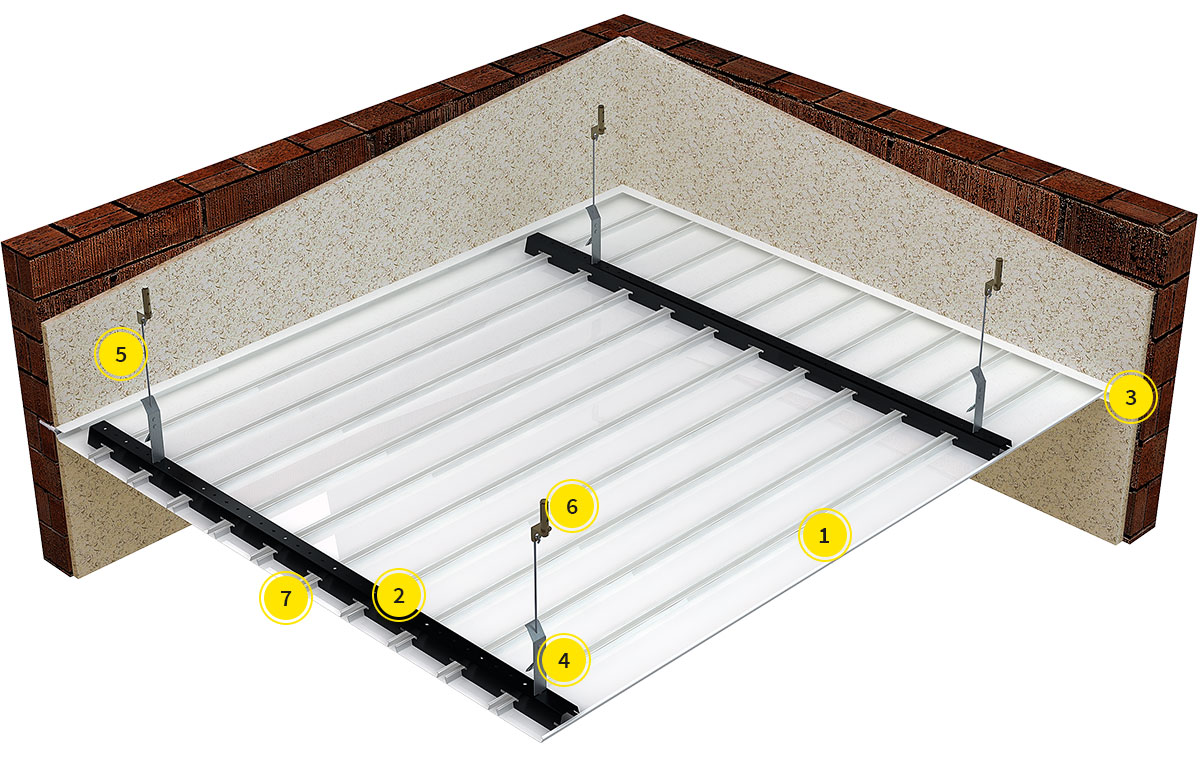

| No | Description | Coefficient | |||
|---|---|---|---|---|---|
| 1 | Panel 85 | 10,00 | |||
| 2 | Main runner | 1,00 | |||
| 3 | C wall angle | 2,00 | |||
| 4 | Hanger | 0,70 | |||
| 5 | Hanger wire | 0,70 | |||
| 6 | Steel dowel | 0,70 | |||
| 7 | Flush joint profile | 10,00 |
| الألوان(RAL رمز) |
|
مونتاج
معلومات الجمعية والصور ليست جاهزة.
